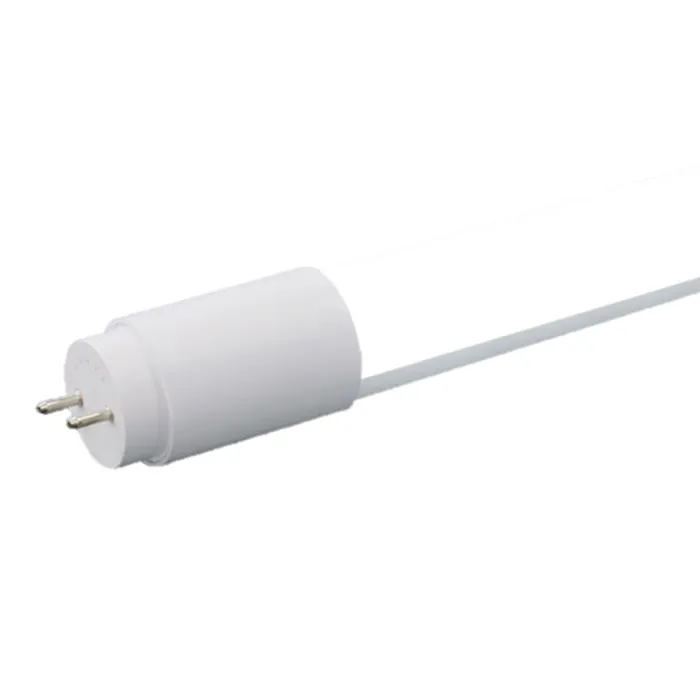

T8P Label No5-Series
T8P Label No5-Series 150lm/W
acroluxesco1

Applications
Instead T8 fluorescent 60 cm and 120cm
Manufacturing Floor, Warehouse, Hospitals, Office Buildings, Car Park, Supermarket, Green Building, Walk-path, etc.
Parameter Value
Color Temperature6,000K - 6,500K
Power8W / 14W / 16W
Luminous Flux1,200lm / 2,100lm / 2,400lm
Luminous Efficiency150lm/W
CRI≥80 Ra
Input VoltageAC180-260V, 50/60Hz
%THDi<15 % @ 230V±10%
Power Factor> 0.95
Working Temperature-30 to 50 Celsius
Surge Protection1kV
Housing MaterialPC Milky Cover
Lifetime50,000 Hours
Net Weight100g / 180g / 180g

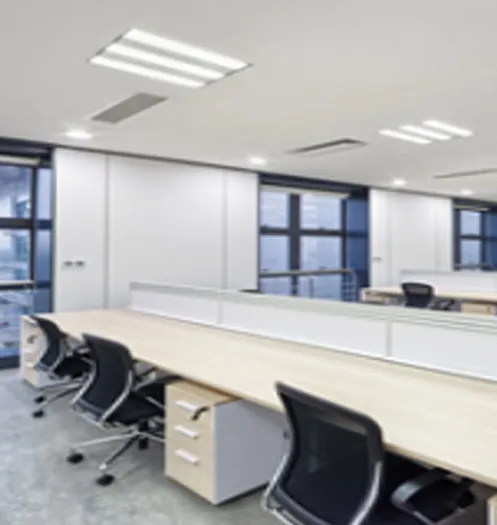

Installations
acroluxesco2

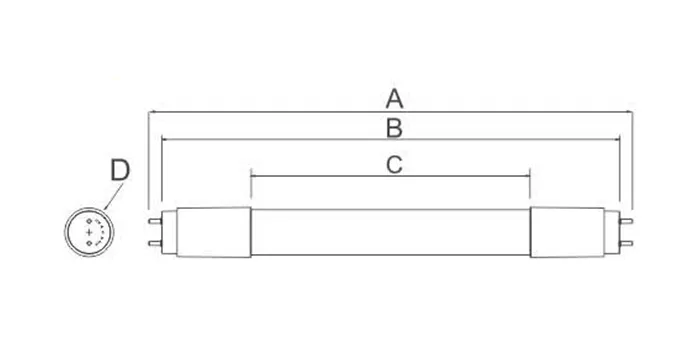

Dimension
acroluxesco3

Size A B C D
60cm/2ft 603 588 486 28
120cm/4ft 1213 1198 1096 28

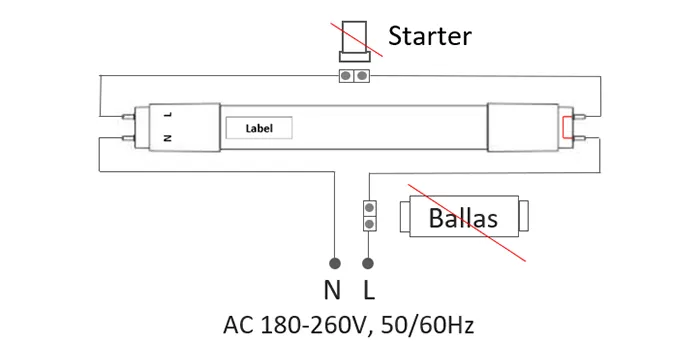

Wiring Installation
acroluxesco4
